Tweet Search

Tweet Search is a Simple application to allow you to search for Tweets containing a particular query with the Twitter® Search RSS Feed using LINQ and Silverlight.

Printer Friendly Download Tutorial (275KB) Download Source Code (6.93KB) Online Demonstration

Step 1

Start Microsoft Visual Web Developer 2010 Express, then Select File then New Project... Select "Visual Basic" then "Silverlight Application" from Templates, select a Location if you wish, then enter a name for the Project and then click OK, see below:

New Project

Step 2

New Silverlight Application window should appear, uncheck the box "Host the Silverlight Application in a new Web site" and then select the required Silverlight Version, see below:

New Silverlight Application

Step 3

A Blank Page named MainPage.xaml should then appear, see below:

MainPage.xaml

Step 4

Select Project then Add Reference... The "Add Reference" window should appear, select "System.XML.Linq" from the ".NET" List, see below:

Add System.XML.Linq Reference

Step 5

Add the Reference to "System.XML.Linq" by Clicking on OK.

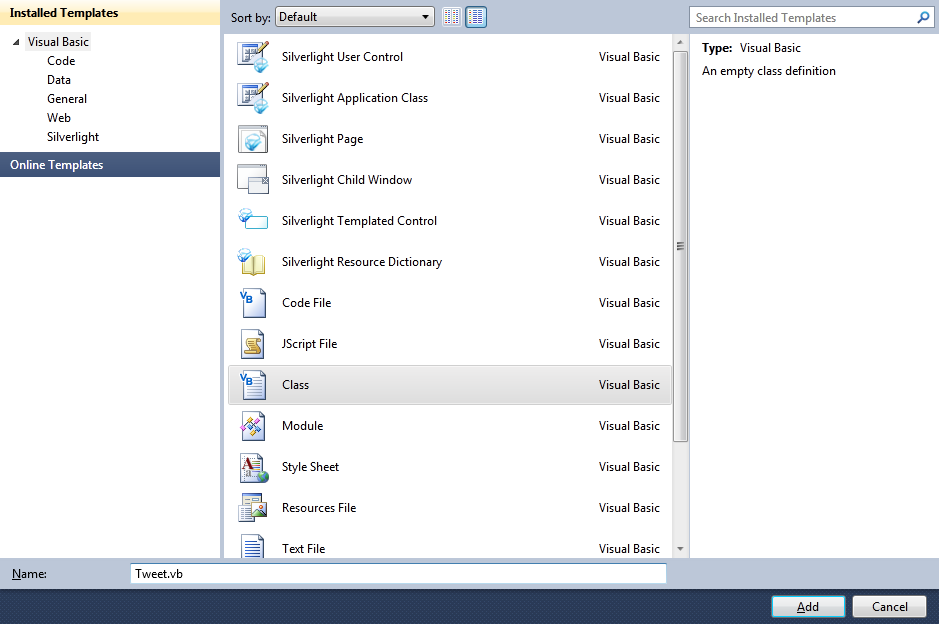

Select Project then "Add Class...", and select the "Class" Template is not already Selected, then change the "Name" to Tweet.vb , see below:

Tweet Class

Step 6

Add the new Class to the Project by Clicking on Add, then in the Code View for the new Class, below the "Public Class Tweet" line type the following:

Private _title As String
Private _author As String
Private _link As String
Private _published As DateTime

See Below:

Tweet Class Declarations

Step 7

While still in the Code View for Tweet.vb, above the "End Class" for "Public Class Tweet", type the following Properties:

Public Property Title As String
  Get
    Return _title
  End Get
  Set(ByVal Value As String)
    _title = Value
  End Set
End Property
Public Property Author As String
  Get
    Return _author
  End Get
  Set(ByVal Value As String)
    _author = Value
  End Set
End Property
Public Property Link As String
  Get
    Return _link
  End Get
  Set(ByVal Value As String)
    _link = Value
  End Set
End Property
Public Property Published As DateTime
  Get
    Return _published
  End Get
  Set(ByVal Value As DateTime)
    _published = Value
  End Set
End Property

See Below:

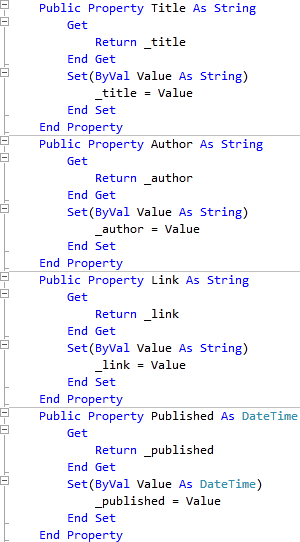

Tweet Class Properties

Step 8

Return to the MainPage Designer View by selecting the "MainPage.xaml" Tab.
Then from the All Silverlight Controls section in the Toolbox select the Canvas control:

Canvas Control

Step 9

Draw a Canvas on the Page then in the XAML Pane above the "</Grid>" then change the "Canvas1" line to the following:

<Canvas Height="35" Width="400" VerticalAlignment="Top" HorizontalAlignment="Left" Name="Toolbar"></Canvas>

See below:

MainPage with Toolbar Canvas

Step 10

Then from the Common Silverlight Controls section in the Toolbox select the TextBox control:

TextBox Control

Step 11

Draw a TextBox on the Canvas and in the XAML Pane below the "<Canvas>" tag and above the "</Canvas>" change "TextBox1" to the following:

<TextBox Canvas.Left="6" Canvas.Top="6" Height="23" Width="237" Name="Subject"/>

See below:

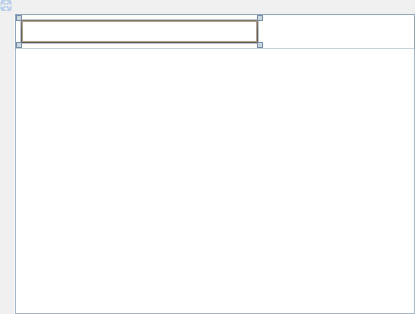

MainPage with Subject TextBox

Step 12

Then from the Common Silverlight Controls section in the Toolbox select the Button control:

Button Control

Step 13

Draw a Button on the Canvas (Toolbar) next to the TextBox, by dragging the Button from the Toolbox onto the Canvas then in the XAML Pane inbetween the "<TextBox>" and "</Canvas>" tags change the "<Button>" line to the following:

<Button Canvas.Left="249" Canvas.Top="6" Height="23" Width="75" Name="Search" Content="Search"/>

See below:

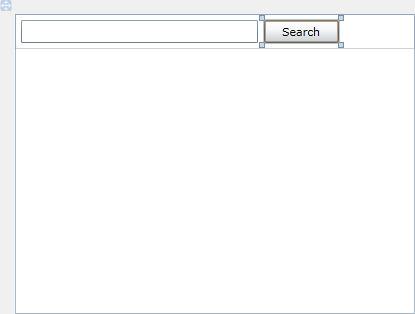

MainPage with TextBox and Button

Step 14

While still in the XAML Pane below the "</Canvas>" and above the "</Grid>" Tag, type the following ListBox XAML:

<ListBox Height="265" Width="400" Margin="0,35,0,0" HorizontalAlignment="Left" VerticalAlignment="Top" Name="Results">
  <ListBox.ItemTemplate>
    <DataTemplate>
      <StackPanel Width="360" Orientation="Vertical">
        <HyperlinkButton NavigateUri="{Binding Path=Link}">
          <HyperlinkButton.Content>
            <TextBlock TextWrapping="Wrap" Text="{Binding Path=Title}"/>
          </HyperlinkButton.Content>
        </HyperlinkButton>
        <TextBlock Text="{Binding Path=Published}"/>
        <TextBlock FontWeight="Bold" Text="{Binding Path=Author}"/>
      </StackPanel>
    </DataTemplate>
  </ListBox.ItemTemplate>
</ListBox>

See below:

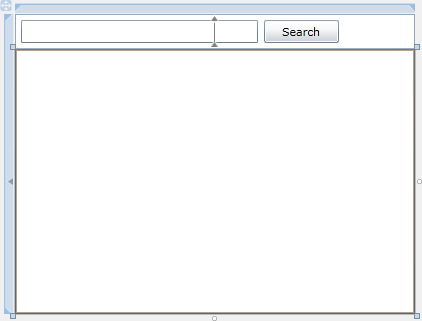

MainPage with TextBox, Button and ListBox

Step 15

Right Click on the Page or the entry for "MainPage.xaml" in Solution Explorer and choose the "View Code" option. In the Code View above the "Partial Public Class MainPage" line type the following:

Imports System.Xml.Linq

See Below:

MainPage.xaml Imports

Step 16

While still in the Code View for MainPage.xaml, below the "End Sub" for "Public Sub New()" Constructor type the following Subs:

Private Sub Tweets(ByVal Sender As Object, _
    ByVal e As DownloadStringCompletedEventArgs)
  Dim _xml As XElement
  Try
    If Not e.Cancelled Then
      _xml = XElement.Parse(e.Result)
      For Each Value As XElement In _xml.<channel>.<item>
        Dim _tweet As New Tweet
        _tweet.Title = Value.<title>.Value
        _tweet.Published = Value.<pubDate>.Value
        _tweet.Author = Replace(Value.<author>.Value, "@twitter.com", "")
        _tweet.Link = Value.<link>.Value
        Results.Items.Add(_tweet)
      Next
    End If
  Catch ex As Exception
    ' Ignore Errors
  End Try
End Sub

Private Sub Query(ByRef Value As String)
  Dim _client As New WebClient
  AddHandler _client.DownloadStringCompleted, AddressOf Tweets
  _client.DownloadStringAsync(New Uri("http://search.twitter.com/search.rss?rpp=50&q=" & Value))
End Sub

See Below:

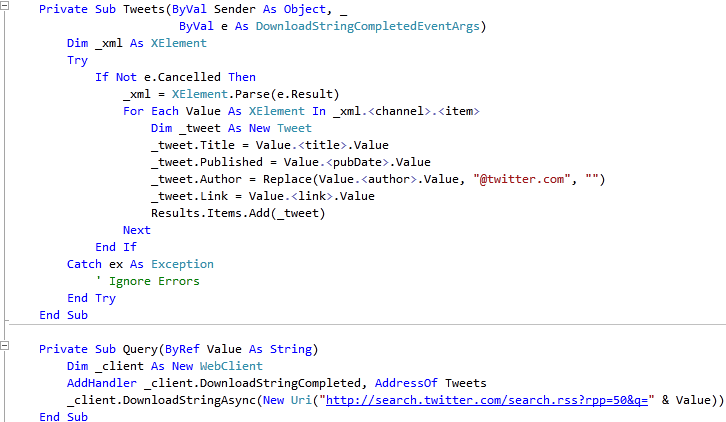

MainPage Tweets and Query Subs

Step 17

Return to the Designer View, by selecting the "MainPage.xaml" Tab, or Right Click on the Page or the Entry for "MainPage.xaml" in Solution Explorer and choose the "View Designer" option.
Double Click on the "Search" Button and type in the Search_Click Sub:

Query(Subject.Text)

See Below:

Search Button Click Event

Step 18

Save the Project as you have now finished the Silverlight application. Select Debug then Start Debugging or click on Start Debugging:

Start Debugging

After you do, the following will appear in a new Web Browser window:

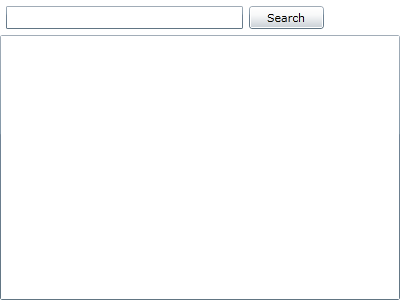

Application Running

Step 19

Now type into the TextBox something to Search for, then Click on the Search button to display the first fifty Results, see below:

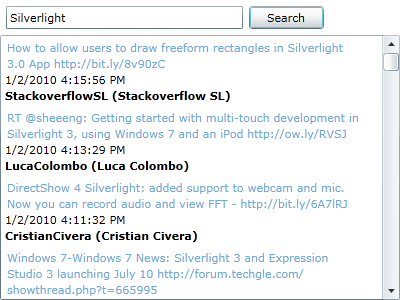

Tweet Search

Step 20

Close the Browser window by clicking on the Close Button Close on the top right of the Web Browser to Stop the application.

This is a very simple example of getting search results from Twitter®, you can also get other RSS-based results such as User Timelines and more, it up to you!
